NIKKEN Glass Cutters
NIKKEN – the world’s highest quality, long-lasting glass cutters – MADE IN JAPAN
Carbide Glass Cutter X03 Series・Straight cuts・Curved cuts
NORMAL WHEEL
- The cutter head is wide and well-suited for cutting with a ruler. The X03 can also be used for free hand cutting. This oiled type cutter won’t create residual particles as it cuts. This allows the glass to split cleanly.
- ・Plastic handle type
This cutter is of an original design with an easy to grip handle. The handle features oil resistant plastic. - ・Metal handle type (Indicated with a “B” at the end of the item number)
The metal handle has a hefty weight that adds to power needed to cut thick glass.
| Item Number | Application | Cutting Angle | Suitable Thickness |
|---|---|---|---|
| NC-X03 NC-X03-B |
For general glass | 138° | 2－8mm |
| NC-X03T NC-X03T-B |
For thick glass | 143° | 3－12mm |
| NC-X03S NC-X03S-B |
For very thick glass | 148° | 3－19mm |
| NC-X03K NC-X03K-B |
For thin or hard glass | 110－130° custom angle |
Thin glass 0.3－1.5mm Hard glass 0.3－6.0mm |
※Each cutter head is engraved with a T, S, or K to indicate the item number as shown.
LASER WHEEL
- The X03 featuring our carbide Laser Wheel is a high penetrating cutting instrument that enables non-slip starts and deeper scoring. Going beyond the performance of the X03K models, the Laser Wheel can cut ultra thin glass as find as 0.03－0.3mm.
This model will also economically cut the following types of material : LCD, half-tempered glass, hard glass, quartz glass, optical glass, glass tubes, etc. (The quality of the high penetration effect varies based on the material being cut and is not guaranteed for all materials.)
| Item Number | Application | Cutting Angle | Suitable Thickness |
|---|---|---|---|
| NC-X03 LASER |
For thin or hard glass | 110－130° custom angle |
Very thin glass 0.03－1.5mm Hard glass 0.3－3.0mm |
※Each cutter head engraved with LASER indicates it has the Laser Wheel.

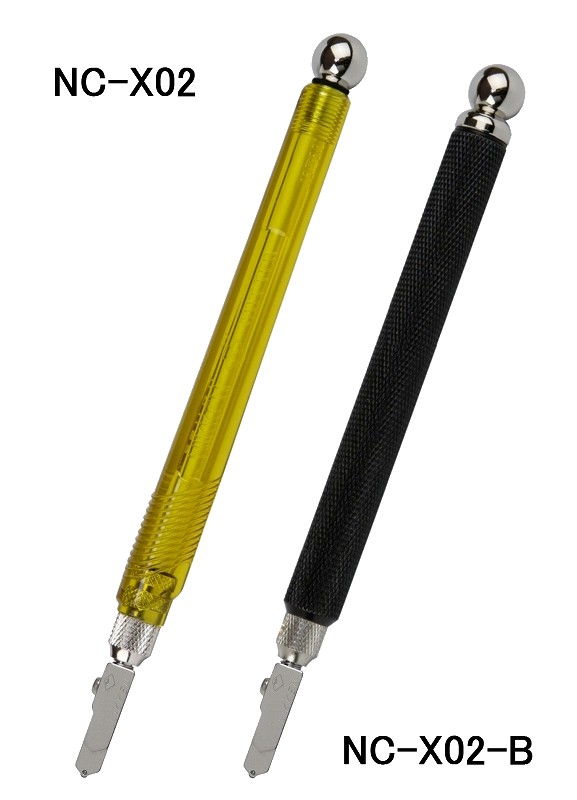

Carbide Glass Cutter X02 Series・Stained glass・Intricate cuts・Curved cuts
- The X02 series is well suited for stained glass and other intricate work. The thin head allows the utilization of both forwards and backwards strokes to easily cut along pattern lines.
| Item Number | Application | Cutting Angle | Suitable Thickness |
|---|---|---|---|
| NC-X02 NC-X02-B |
For general glass | 135° | 2－8mm |
| NC-X02T NC-X02T-B |
For thick glass | 140° | 3－12mm |
| NC-X02K NC-X02K-B |
For thin or hard glass | 110－130° custom angle |
Thin glass 0.3－1.5mm Hard glass 0.3－6.0mm |
※Each cutter head is engraved with a T or K to indicate the item number as shown.

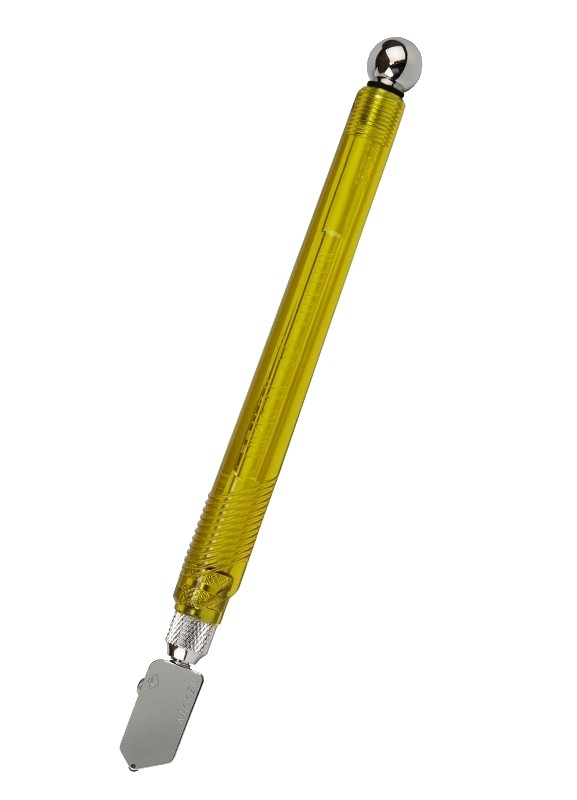

Carbide Glass Cutter Z03 Series・Straight cuts・Curved cuts
- The Z03 series cutters feature an extended life cutting wheel. It now has double the cutting life of the original X03 series cutters. These new cutters can significantly reduce your glass cutting costs.
The Z03 series is recommended for industrial cutting and for cutting hard glass that quickly dulls normal cutters.
※For series identification, NC-Z03 is engraved on the side of head.
| Item Number | Application | Cutting Angle | Suitable Thickness |
|---|---|---|---|
| NC-Z03 NC-Z03-B |
For general glass | 138° | 2－8mm |
| NC-Z03T NC-Z03T-B |
For thick glass | 143° | 3－12mm |
| NC-Z03S NC-Z03S-B |
For very thick glass | 148° | 3－19mm |
| NC-Z03K NC-Z03K-B |
For thin or hard glass | 110－130° custom angle |
Thin glass 0.3－1.5mm Hard glass 0.3－6.0mm |
※Each cutter head is engraved with a T, S, or K to indicate the item number as shown.
PCD Glass Cutter・Straight cuts・Curved cuts
NORMAL WHEEL
- This cutter features a polycrystalline diamond (PCD) wheel with a cutting life more than 10 times longer than that of the normal carbide wheel.
This cutter is recommended for difficult to cut glass or materials that would wear out a normal carbide cutter such as 0.1mm very thin glass, LCD, sapphire glass, quartz glass, ceramic, etc.
| Item Number | Application | Cutting Angle | Suitable Thickness |
|---|---|---|---|
| NC-X03K-PCD NC-X03K-PCD-B |
For thin or hard glass | 90－130° custom angle |
Very thin glass 0.1－1.5mm Hard glass 0.3－3.0mm |

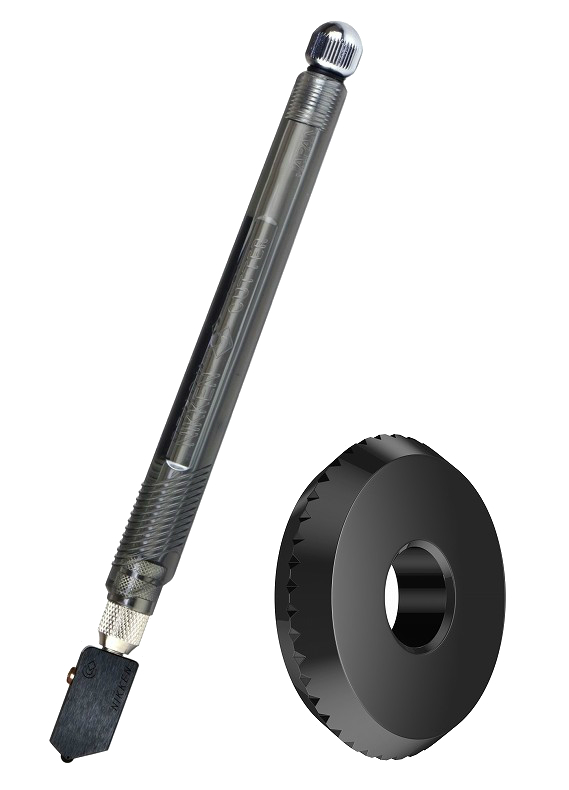

LASER WHEEL
- The X03 featuring our PCD Laser Wheel is a high penetrating cutting instrument that enables non-slip starts and deeper scoring. The PCD Laser Wheel can cut ultra thin glass as find as 0.03－0.3mm.
Enhanced by the long life of PCD, this Laser Wheel will also economically cut the following types of material : LCD, half-tempered glass, sapphire glass, quartz glass, ceramic, glass tubes, etc. (The quality of the high penetration effect varies based on the material being cut and is not guaranteed for all materials.)
| Item Number | Application | Cutting Angle | Suitable Thickness |
|---|---|---|---|
| NC-X03-PCD LASER |
For thin or hard glass | 110－130° custom angle |
Very thin glass 0.03－1.5mm Hard glass 0.3－3.0mm |
※Each cutter head engraved with LASER indicates it has the Laser Wheel.
About NIKKEN Glass Cutters & Official Packaging
※Spare heads are available for all glass cutters.
※For custom angles, please indicate the type of material and thickness to be cut when placing the order.
※Please use machine oil when cutting glass.
※All product specifications are subject to change without notice.
This is the official packaging of Nikken glass cutters.
Imitation Warning : The package below is using our name without permission and does not contain our products. We have no affiliation with the producer. Please be careful, other imitation glass cutters are being sold bearing “NIKKEN” on their packaging.
