Recommended for detaching circular and irregular shapes or corners from sheets of glass or mirrors. Also suitable for the making of stained glass.
These products can be resharpened or repaired.
Specifications
・Glass thickness
For 1.5mm – 6.0mm
For 6.0mm – 12mm
・Cutting pliers with a spring are also available.

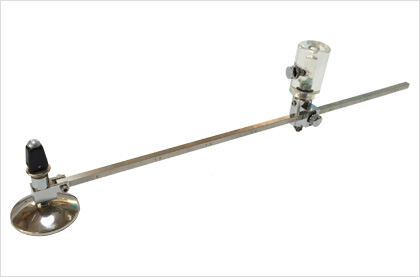

Circle Cutter (suction type)
This product adheres to the surface of glass with a suction cup to cut perfect circles.
Specifications
・Glass thickness
1.8mm – 6.0mm
・Cutting size
φ60mm – φ870mm
・Oil tank, replaceable wheel
・Larger custom sizes are also available.

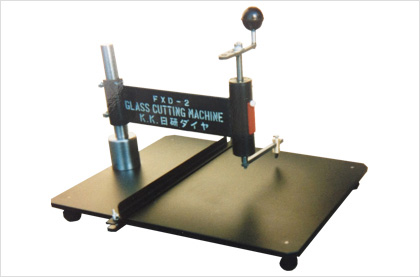

Benchtop Glass Circle Cutting Jig
This jig is suitable for experimental and industrial production. Both the cutting table and the main unit have iron ball bearings, so this jig has both high strength and high precision. The functionality of this cutting jig has made it a best seller among industrial manufacturers of glass, lens, and mirrors.
Specifications
・Glass thickness
0.5mm – 6.0mm
・Cutting size
φ27mm – φ330mm (possilbe to cut φ5mm or more)
・Jig size
Width 330 x Depth 500 x Height 310mm
※Custom sized jigs or jigs specialized for very thin glass (0.5mm or lower) can be made-to-order.

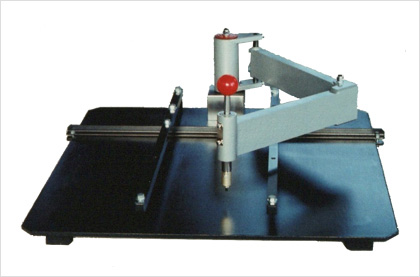

Benchtop Glass Cutting Irregular Cutting Jig
This jig is suitable for experimental and industrial production. Both the cutting table and the main unit are iron, and the arm has ball bearings allowing for light movement. This cutting jig has both strength and a high degree of precision. This jig can also cut along the inside of shapes and is easy to handle.

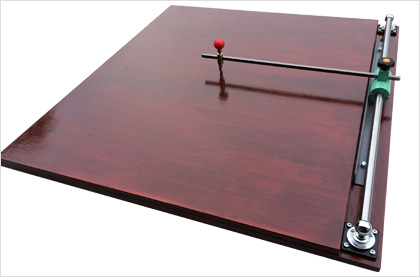

The slide bearings allow for smooth adjustments and cutting of straight lines. This wooden cutting jig is easy to carry.
Specifications
・Glass thickness
0.5mm – 6.0mm
・Jig size
300mm x 300mm – 1000mm x 1000mm
These cutters are made-to-order.

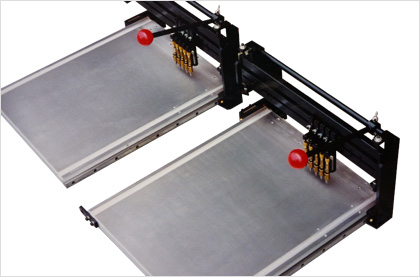

Precision Glass Straight Cutting Jig
This manual precision jig allows for uni-axial and multi-axial cuts by increasing the number of cutter heads. This makes it possible to cut glass with a high degree of accuracy for experimental production, research, and industrial production.
